Nuclear Reactor Vessel Adaptor

For customers in the nuclear industry, it is essential that all custom built projects are constructed to the highest levels of accuracy and quality and in full compliance with NRC regulations. At Trade Tech, Inc., we are building on over 35 years of experience in heavy-duty, complex machining and fabrication services. We were a natural fit when a customer in the nuclear power generation industry required a custom fabricated reactor vessel adaptor, along with a number of associated parts. This project needed to be completed within a tight timeframe for accelerated delivery. With our extensive experience in machining heavy duty components with close tolerances, we were pleased to accept the contract.

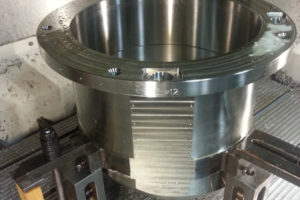

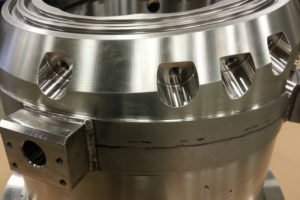

Using customer-supplied specifications our services required a fair amount of flexibility; we needed to accommodate changing design parameters throughout the project. Full material traceability was also required throughout the process. We began by procuring 304 stainless steel, and then employed our full complement of advanced equipment, including FCAW welders, CNC turning and CNC multi-axis milling machines. The project had some very challenging elements, including a spherical surface, and various complex geometries. Our highly experienced machinists were able to fulfill all of our customer’s requirements at very high levels of accuracy, maintaining tightest tolerances of ±0.0005″.

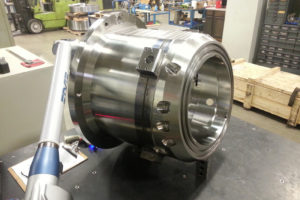

Our customer was impressed with both the end product and the processes that were required to achieve it. Our manufacturing engineers developed a strategy to manufacture the vessel and deliver it within an accelerated timeframe, all the while maintaining full documentation of the procedures employed. The finished part was subjected to thorough CMM inspection to ensure that it met the stringent standards required for nuclear power components. When all appropriate testing and verification was complete, the reactor vessel adaptor was shipped to our U.S. client.

For further information about this project or to learn how we can assist with your heavy-duty, complex fabrication requirements, please contact us directly.

Reactor Vessel Adaptor Specifications

Product Name

Reactor Vessel Adaptor

Production Description

Plan and execute manufacturing for a reactor vessel adapter and associated parts for accelerated delivery

Capabilities Applied / Processes

Primary:
Fabrication, Machining, Vertical Turning, Milling, AWS D1.1 Welding

Secondary:
Forming, Stress Relieve

Equipment Used to Manufacture Part

Welding FCAW, CNC Multi-axis Milling, CNC Vertical Lathe, CMM Inspection

Overall Part Dimensions

20.590″ diameter

Tightest Tolerances (±)

.0005

Material Used

304 Stainless Steel

Material Finish

As Machined

In Process Testing / InsIn Process Testing / Inspection Performedpection Performed

CMM inspection, Visual Weld Inspection per AWS D1.6 of all welds.

Industry For Use

Nuclear Power Generation

Volume

1 Piece

Delivery/Turnaround Time

8 weeks

Delivery Location

US

Standards Met

Customer Supplied Print, CAD Model
